Newgrange
Newgrange is a beautiful building standing in Ireland (53o
42'
latitude North and 6o 29' longitude West). It is more than
5000 years old
(build around 3060 CalBCE or 2500 Uncal BP), and thus older than the
pyramids
in Egypt! This building, which is a big mound of some 80 meters in
diameter,
stands in the Boyne Valley, some 40 km north of Dublin. In this
region two more big mounds are located: Dowth
and Knowth.

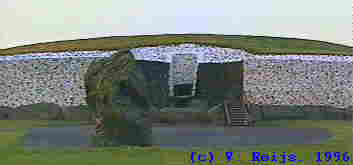

The mound of Newgrange has been reconstructed by 'modern' people, with
the materials that were present on site. Newgrange
now looks very nice (if it really looks the same as 5000 years ago,
remains
a question):

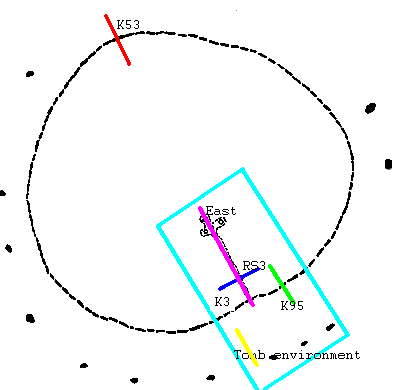

Cross sections of
Newgrange
The close environment around Newgrange is scattered with other
megalithic
constructs. Close to the mound the following items, approximately build
around the same time, are important (© M.J. O'Kelly):
- the mound consisting of:
- the great circle stones (diameter of some 105 meters)
- the kerb stones (97 stones at the perimeter of the cairn)
- the cairn (diameter varying between 78 and 85 meters)
Cut through at K95 (close to
entrance)

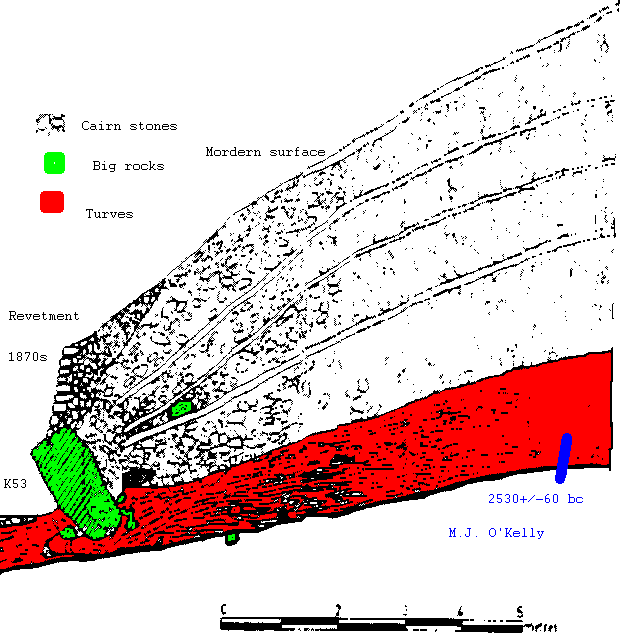

Cut through at K53 (opposite the
entrance) - the passage (cross like, 24 meters long and an
orientation of
some 135
degrees)

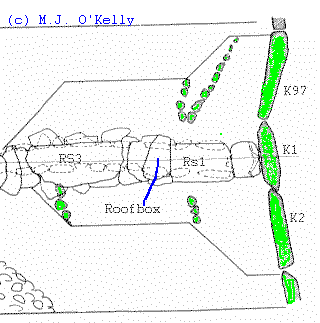

East side of passage

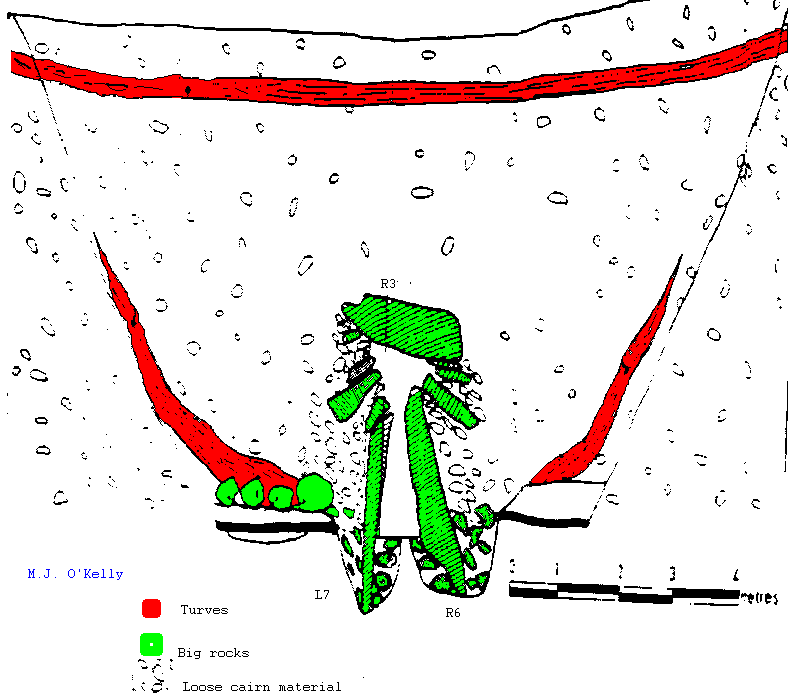

Cross cut at RS3
- an oval setting (7 m from the entrance of the passage, at K97)
- a hut (10 m from the entrance of the passage, at K3)
- a bank of yellow boulder clay (on
the
south-west
side between the perimeter of the cairn and the great circle stones),
Now
it is some 5.5 meter in width and about 600 mm in height.

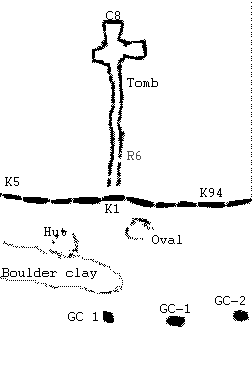

The environment around the entrance of the passage looks like this.
Winter solstice sunrise
On December 22, around winter solstice, in 1996 some pictures were
taken
from the outside. The sun was there at the right moment after four
years
of outage;-) I did not make photo's from the inside, because it is not
allowed and because there is a (closed) waiting list until 2005.
The following photographs are taken:
- 9:03:

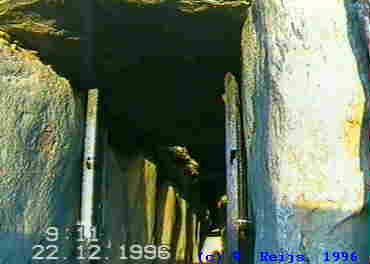

Sunrise (taken just in front of stone GC 1). - 9:11:

The sun shining into the passage. One sees the shadow of the main
entrance
and above that one sees the shadow of the roofbox
(in some instances one also sees the shadow of the iron bar in the
middle
of the roof box). The shadow of the roof box extents until R21 (see
next

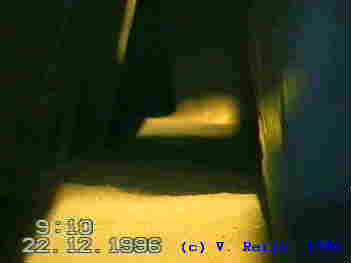

bullet for a close-up). - 9:10:

The sun passing through the roofbox shines
on R21, part of it goes towards the middle of the chamber.
Questions
There will be many questions around Newgrange, but I am interested in
the
following:
Age of Newgrange
The age of Newgrange is of course not easy and accurately known. But
there
is some information about a few parts of it (© M.J. O'Kelly):
- turves on the north side (K53) are: 4480 ± 60 Uncal BP
- turves near the entrance (K95) are: 4535 ± 105 Uncal BP
- charcoal under RS3 is: 4425 ± 45 Uncal BP
- charcoal close to RS15 is: 4415 ± 40 Uncal BP
- it is a real pity there are no more dates about the other
turf
layers
in the mound!
- the partial decay of the mound was already a fact around 3950
±
150 Uncal BP
- Dowth seems from the same period as Newgrange.
Remember: There is a difference of some 500 years around 4000 BCE
between Uncal BP en
(Cal)BCE: 3060 (Cal)BCE is almost the
same as 4450 Uncal BP!
The turves from the north side were already present before the kerb
stones were put down (see cut through at
K53). The passage was made as the latest step, because of the
turves
which are positioned as a kind of basket
around the passage and chamber.
